DSLogic Logic Analyzer 100MHz Abtastrate 16 Kanäle 16GB Speichertiefe für Windows I2C UART für SPI CAN für jtag für SWD Debugging
Product Overview

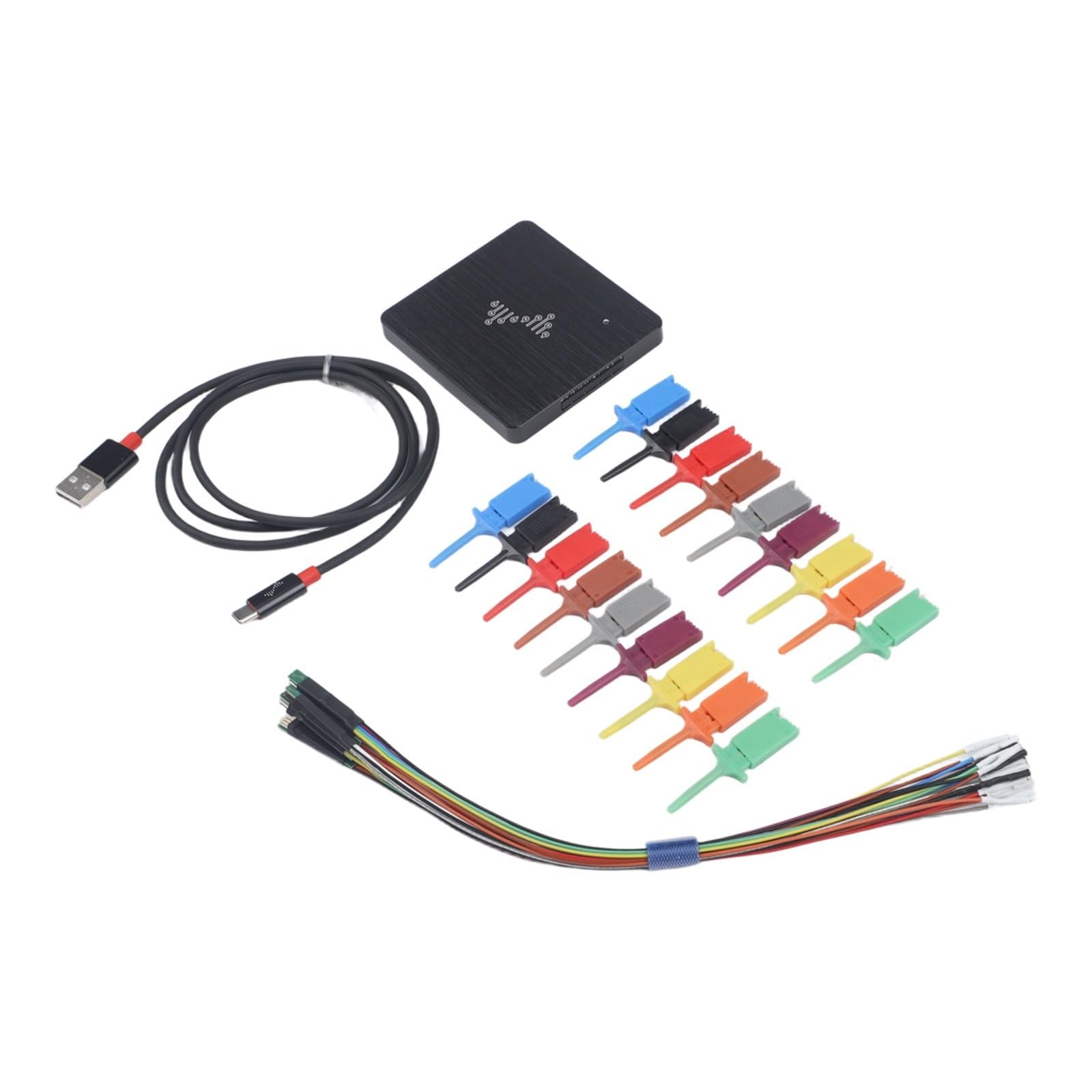

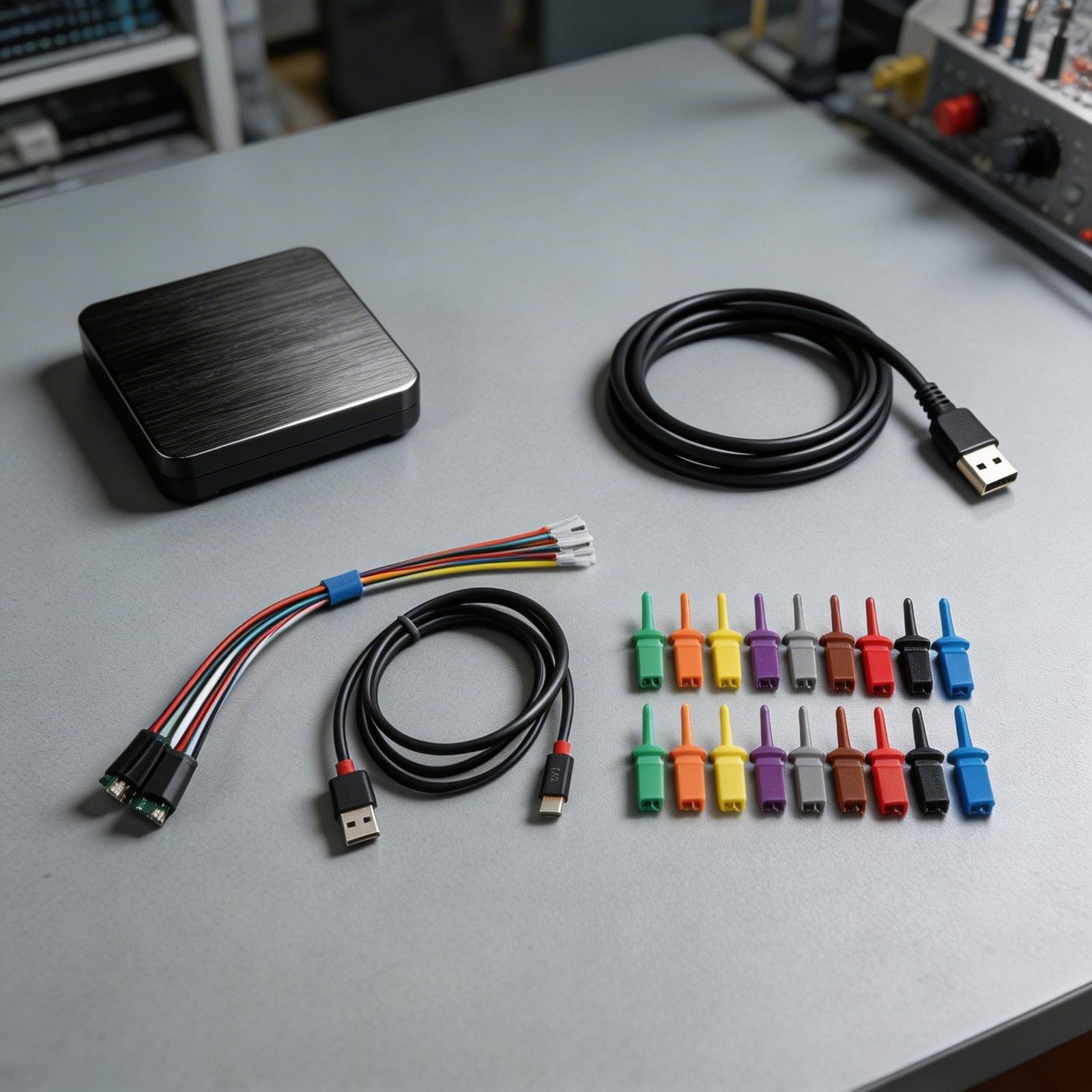

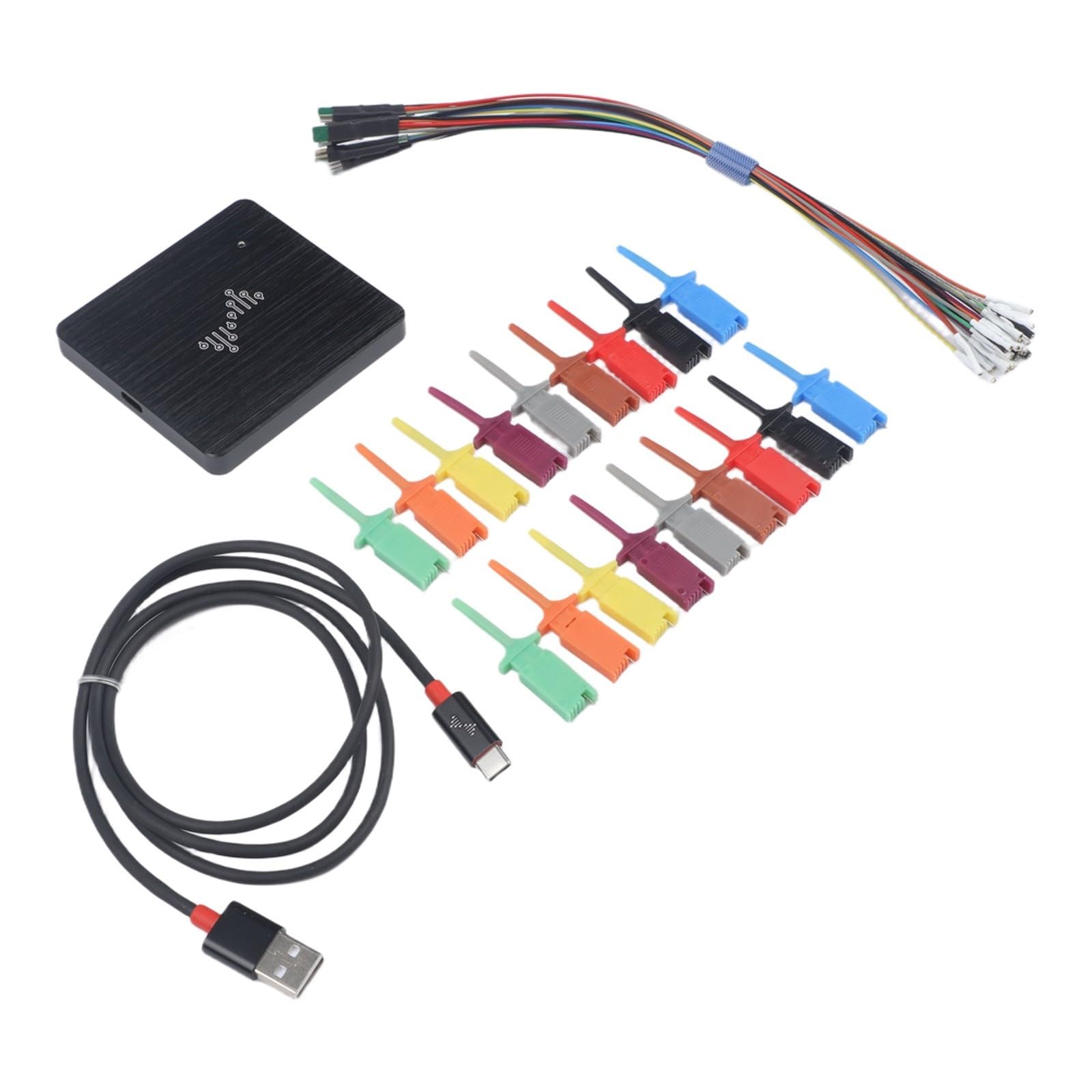

- [BOX CONTENT & PORTABLE DESIGN] Package contains DSLogic Logic Analyzer unit, Type C cable, flexible flat cable set 4+1 and 16 signal clips. All metal housing offers compact portability with 360 degree noise shielding for stable bench or field work.
- [DUAL MODE OPERATION FOR REAL TIME OR BURST CAPTURE] Streaming mode enables real time USB transfer with ultra deep streaming depth, while buffered mode provides large bandwidth hardware memory for ultra high sampling bursts up to 100M on 16 channels.
- [ROBUST PROTECTION & RELIABLE CONNECTIVITY] Metal case with heat dissipation plus overvoltage, overcurrent and electrostatic discharge protection. Removable Type C interface improves durability for repeated lab use.
- [MEASUREMENT & TRIGGER TOOLS FOR DEBUGGING] Built in simple hardware trigger, mouse measurement of width period frequency and duty cycle, plus up to 16 groups for interval and edge statistics to speed root cause analysis.
- [SOFTWARE COMPATIBILITY & DATA MANAGEMENT] Compatible with XP/Vista/7/8/10 with digitally signed drivers. Save and load captures, parse protocols, and export data to common formats for sharing and post processing.
