Mini PC AMD Ryzen 5 5500U Firewall Appliance, Fanless Mini Computer 4 Port 2.5GbE i226-V LAN, OPNsense Micro PC Barebone NO RAM/SSD/OS, USB-C, 3-Display, 2-NVMe, 2-SATA, TF

Marke: AIOPCWA
Betriebssystem: Barebone
CPU-Modell: Ryzen 5
CPU-Taktfrequenz: 4 GHz
Cache-Größe: 8 MB
Beschreibung der Grafikkarte: Radeon RX Vega 7, 300~1800MHz
Grafik-Coprozessor: AMD Radeon RX Vega 7
Spezifische Verwendungsmöglichkeiten für Produkt: Business, Persönlich
Typ des PC-Designs: Mini-PC
Größe des installierten RAM-Speichers: 64 GB

- High-performance and low-power: Equipped with AMD Ryzen5 5500U processor, 6C/12T, base 2.1GHz, up to 4GHz, TDP only 10-25W, 8M cache, with 12 PCIe lanes. Multi-core and multi-threading enable handling of complex tasks, and the low-power design makes it ideal for 24/7 operation. Radeon RX Vega 7 Graphics supports 4K video codec and provides strong graphic processing performance

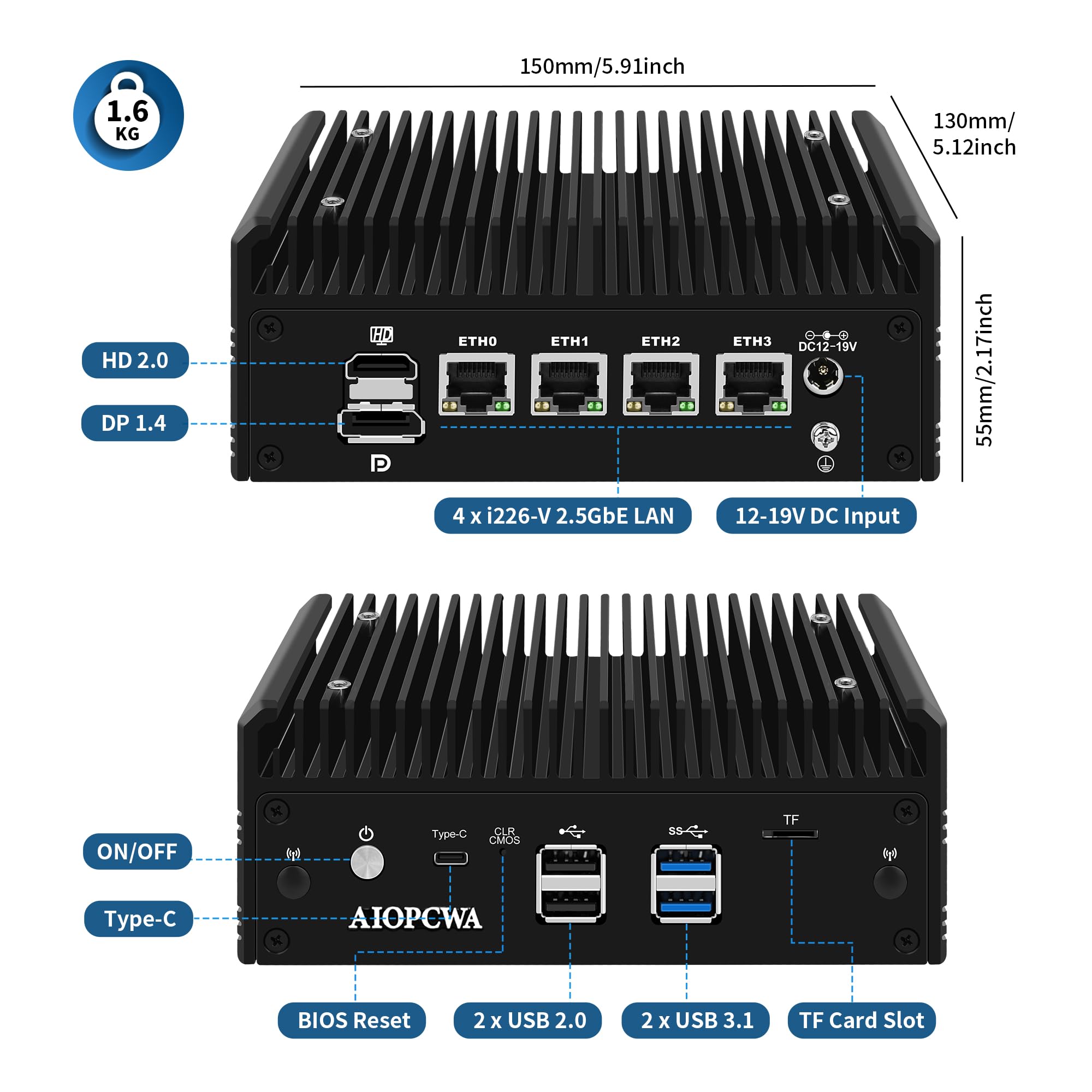

- 2.5Gigabit High Speed Network: 4 x i226-V 2.5Gbit Ethernet rj45 ports, adaptive 100M/1000M/2.5G, not only suitable for Win10/11 for computer office, but also for PF-sense, OPN-sense, Open-wrt for software router firewall or Proxmox, ESXi for virtualized server
- Multiple Storage Supported: 2 x 3200MT/s DDR4 SODIMM RAM slot, up to 64GB. 2 x M.2 2280 M-Key NVMe SSD slot, the NVME1 is PCIe3.0 x4 signal, the NVME2 is PCIe3.0 x1 signal (Converted from M.2 E-key via an adapter; when the adapter is removed, a WiFi/BT module can be expanded). 2 x 12-pin non-standard SATA connectors for 2.5” SSD/HDD. 1 x MicroSD card slot for system boot or data storage
- Various External I/O Interfaces: HDMl2.0 + DP1.4 + USB Type-C, supporting triple screen synchronous/asynchronous display, up to 4K@60Hz. 2 x USB3.1 and 2 x USB2.0 ports for data transfer or connecting a variety of peripherals. The full-featured USB Type-C supports data transfer, DP display, 5V 3A charging, and 12-20V power supply

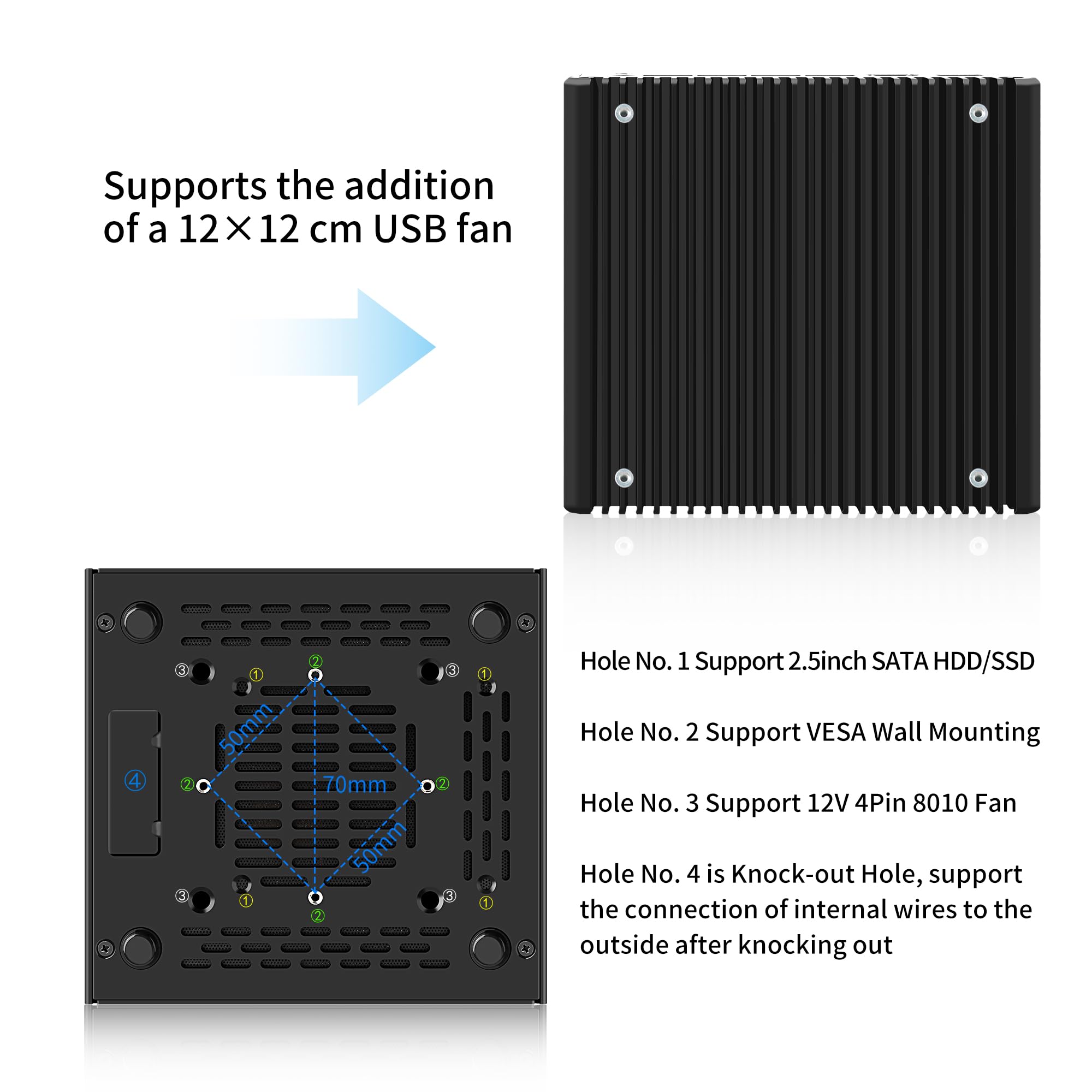

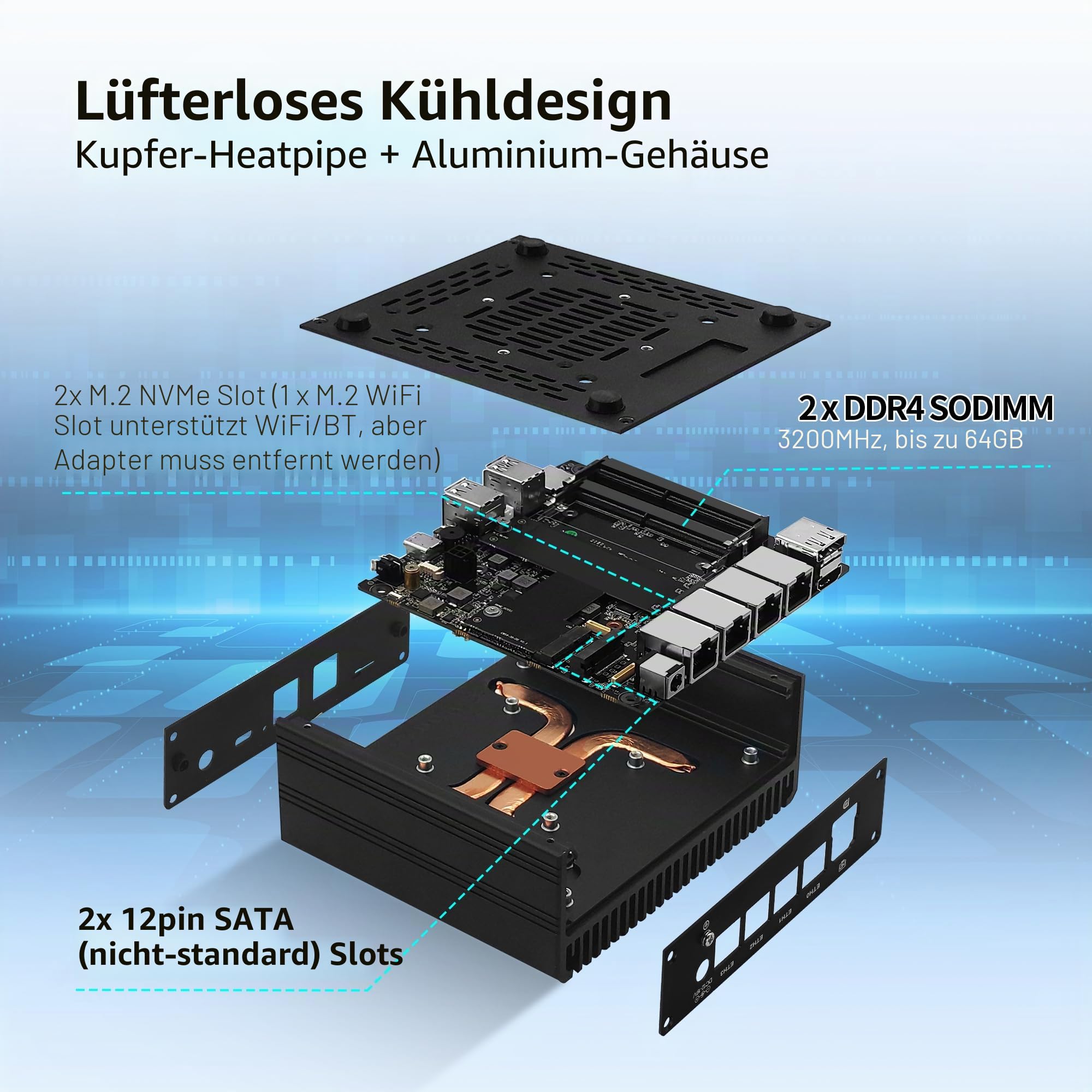

- Passive Cooling with Full Metal Case: The case is designed with passive heat dissipation in mind, with a scientifically designed heat sink and high-efficiency aluminum alloy, ensuring optimal performance without the need for noisy fans. This quiet, energy-efficient solution keeps your system cool even during extended usage. We will provide a PDF product manual, please be sure to check it
