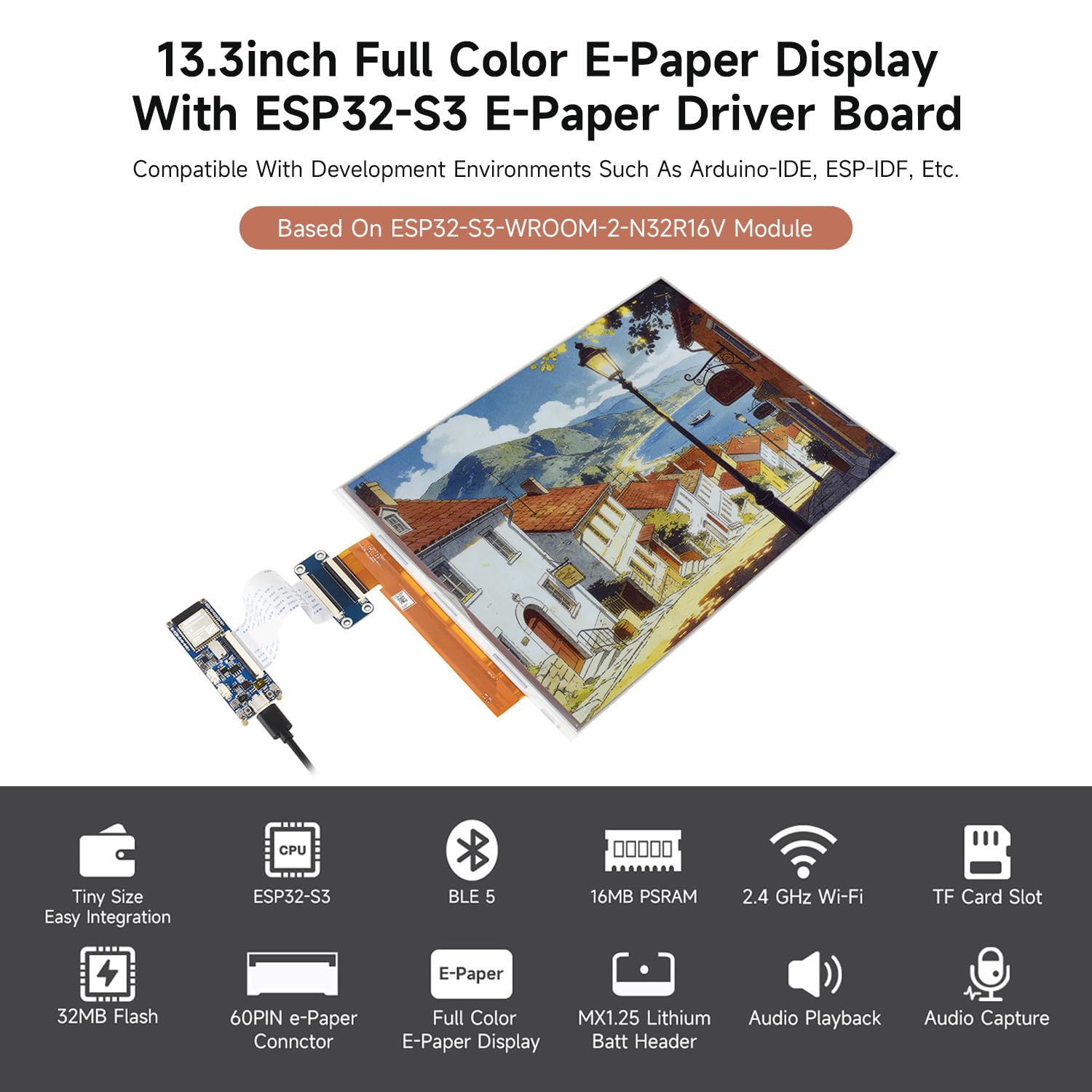

Waveshare 13.3inch Full Color E-Paper Display with ESP32-S3 E-Paper Driver Board, Adopts E Ink Spectra 6 (E6) Technology, Onboard Audio Codec Chip, WiFi & Bluetooth Support

Marke: Waveshare
Modellname: ESP32-S3-ePaper-13.3E6
Speicherkapazität: 32 MB
Konnektivitätstechnologie: Bluetooth, USB, WLAN
Prozessorzahl: 2

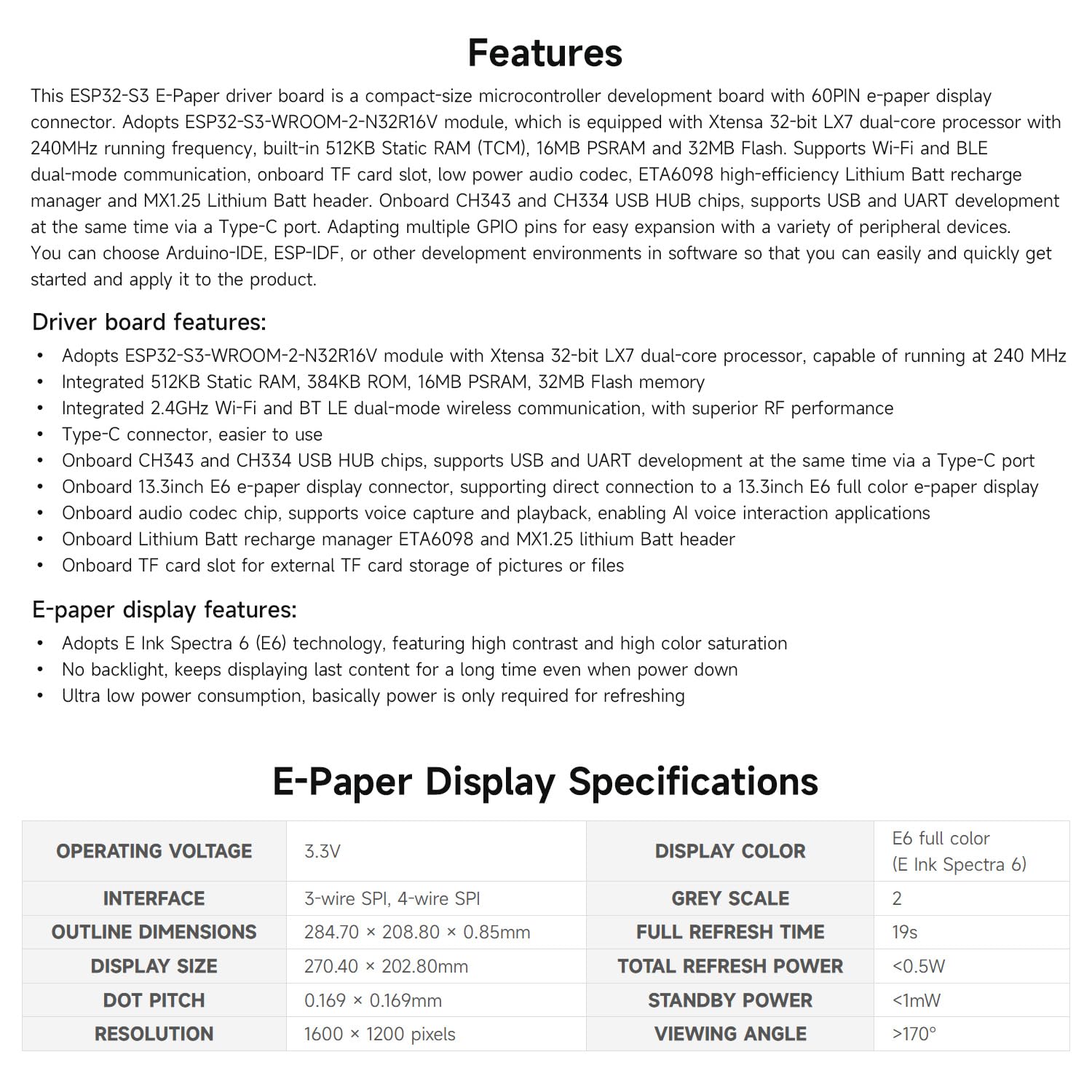

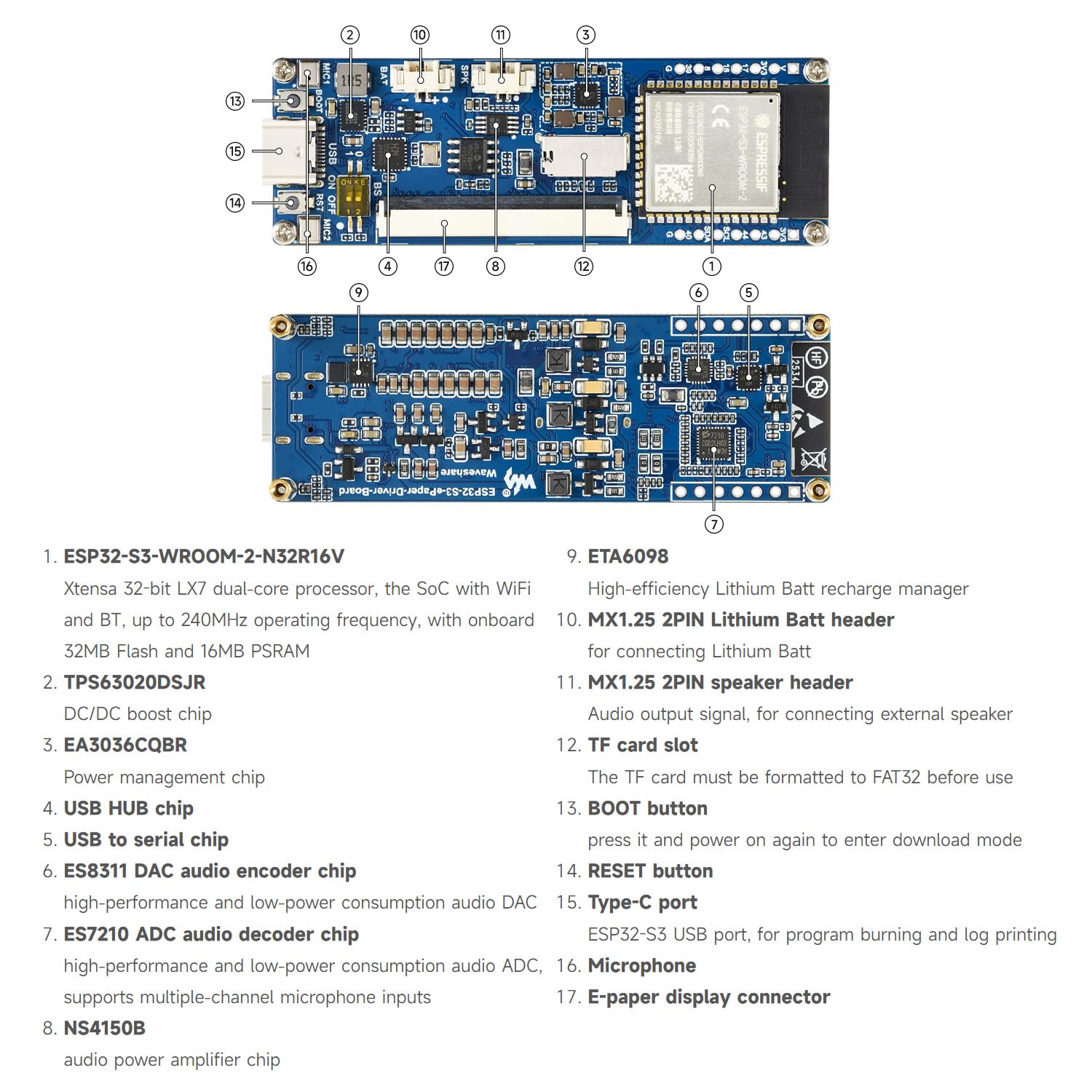

- This ESP32-S3 E-Paper driver board is a compact-size microcontroller development board with 60PIN e-paper display connector.
- Adopts ESP32-S3-WROOM-2-N32R16V module, which is equipped with Xtensa 32-bit LX7 dual-core processor with 240MHz running frequency, built-in 512KB Static RAM (TCM), 16MB PSRAM and 32MB Flash.
- Supports Wi-Fi and BLE dual-mode communication, onboard TF card slot, low power audio codec, ETA6098 high-efficiency Lithium Batt recharge manager and MX1.25 Lithium Batt header.
- Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a Type-C port. Adapting multiple GPIO pins for easy expansion with a variety of peripheral devices.

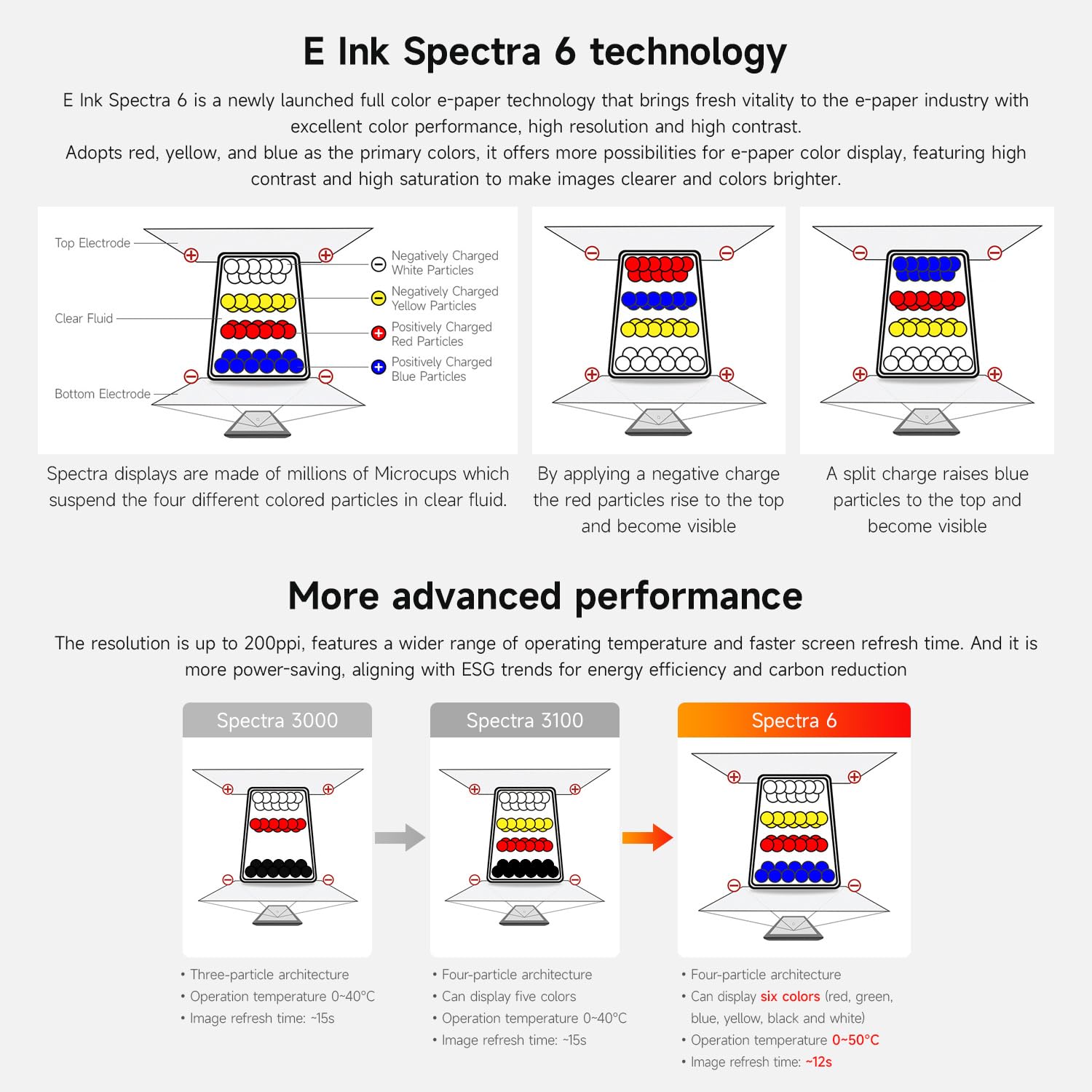

- Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation. No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing
