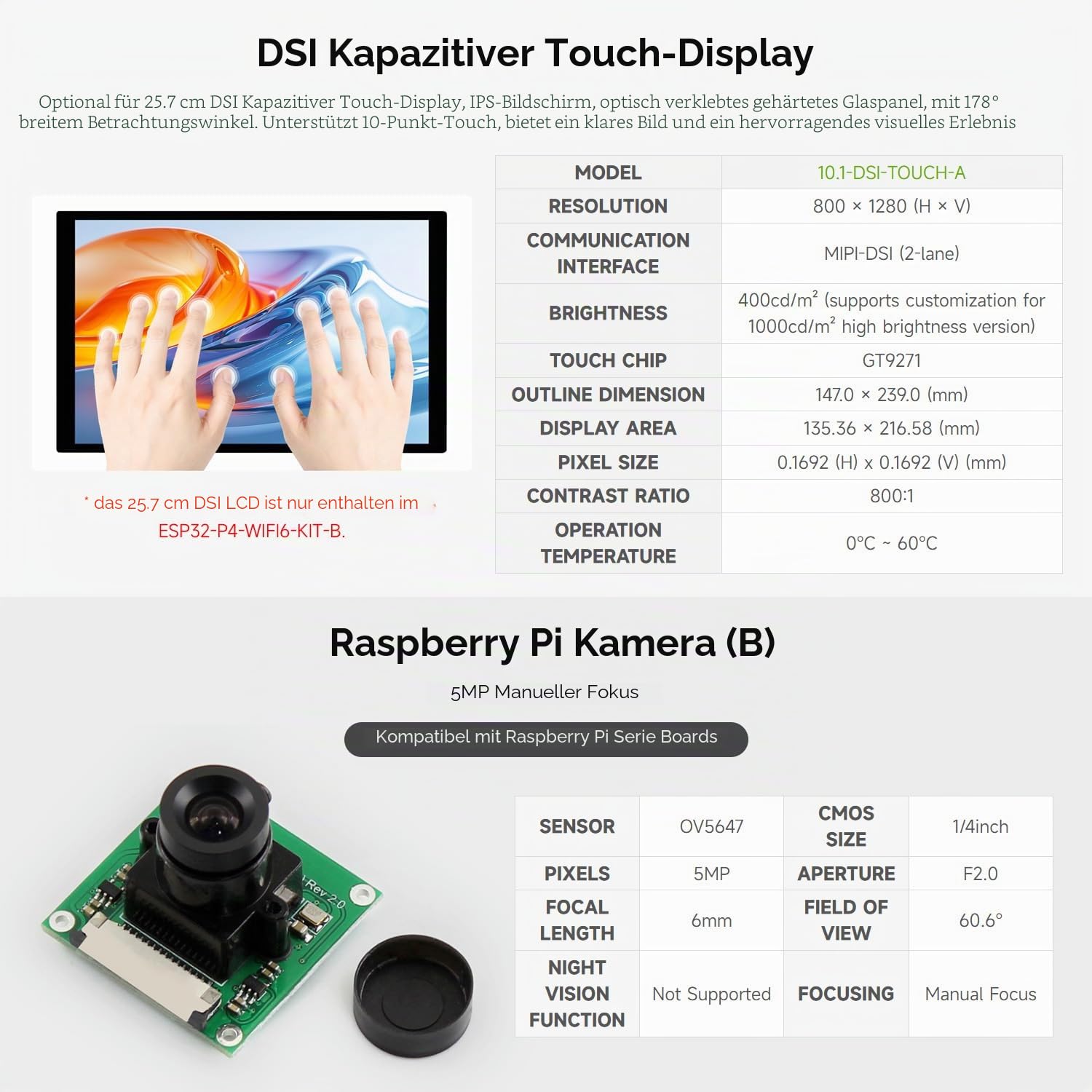

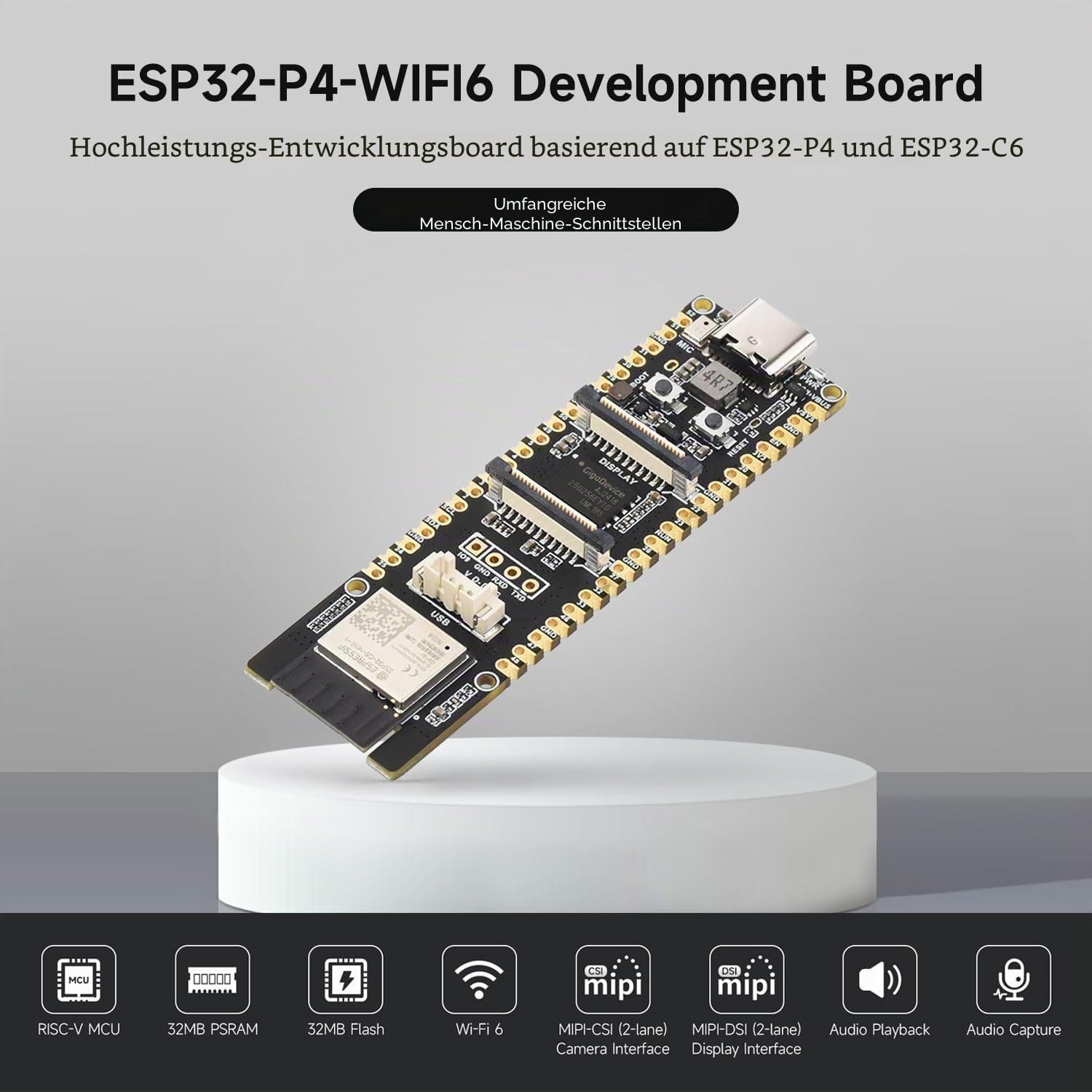

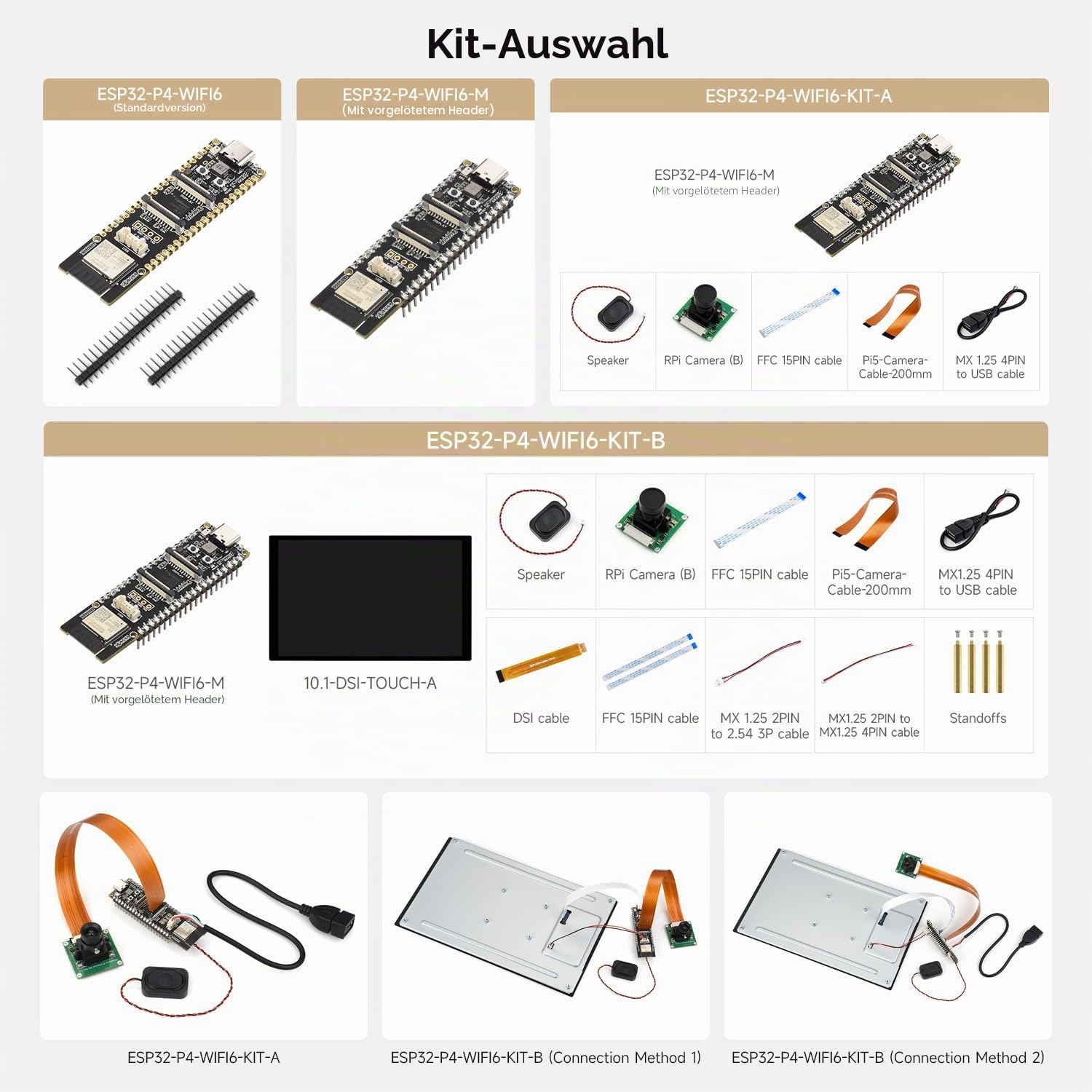

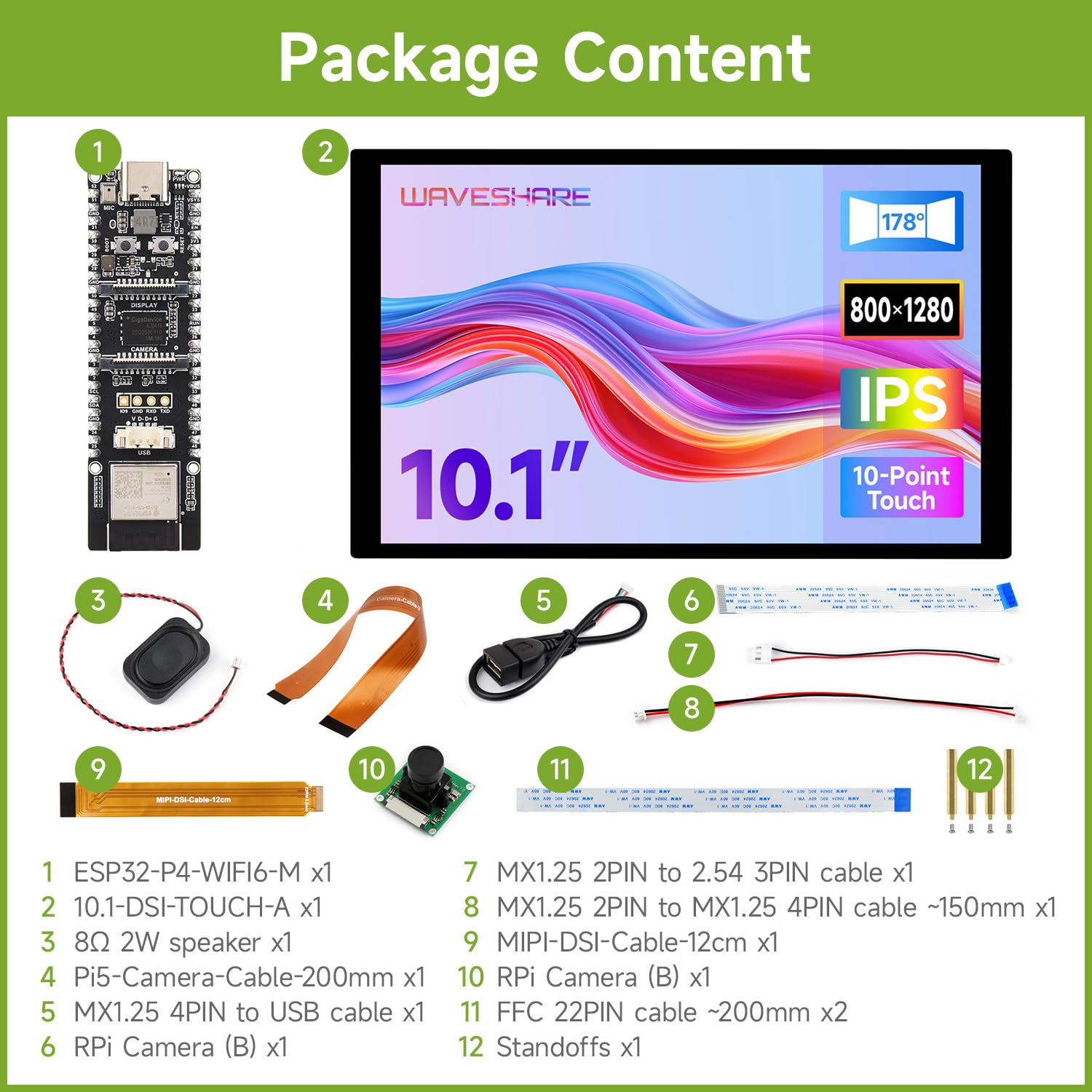

Waveshare ESP32-P4-WIFI6-KIT-B(with RPi Camera & 10.1inch DSI Touchscreen), High-Performance Development Board, Based On ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 and BT 5 / BLE

Marke: Waveshare
Größe des installierten RAM-Speichers: 32 MB
CPU-Taktfrequenz: 400 MHz
Konnektivitätstechnologie: Wi-Fi 6, Bluetooth 5, USB 2.0, I2C, SPI, I2S, I2C, TWAI, GPIO
CPU-Hersteller: Espressif

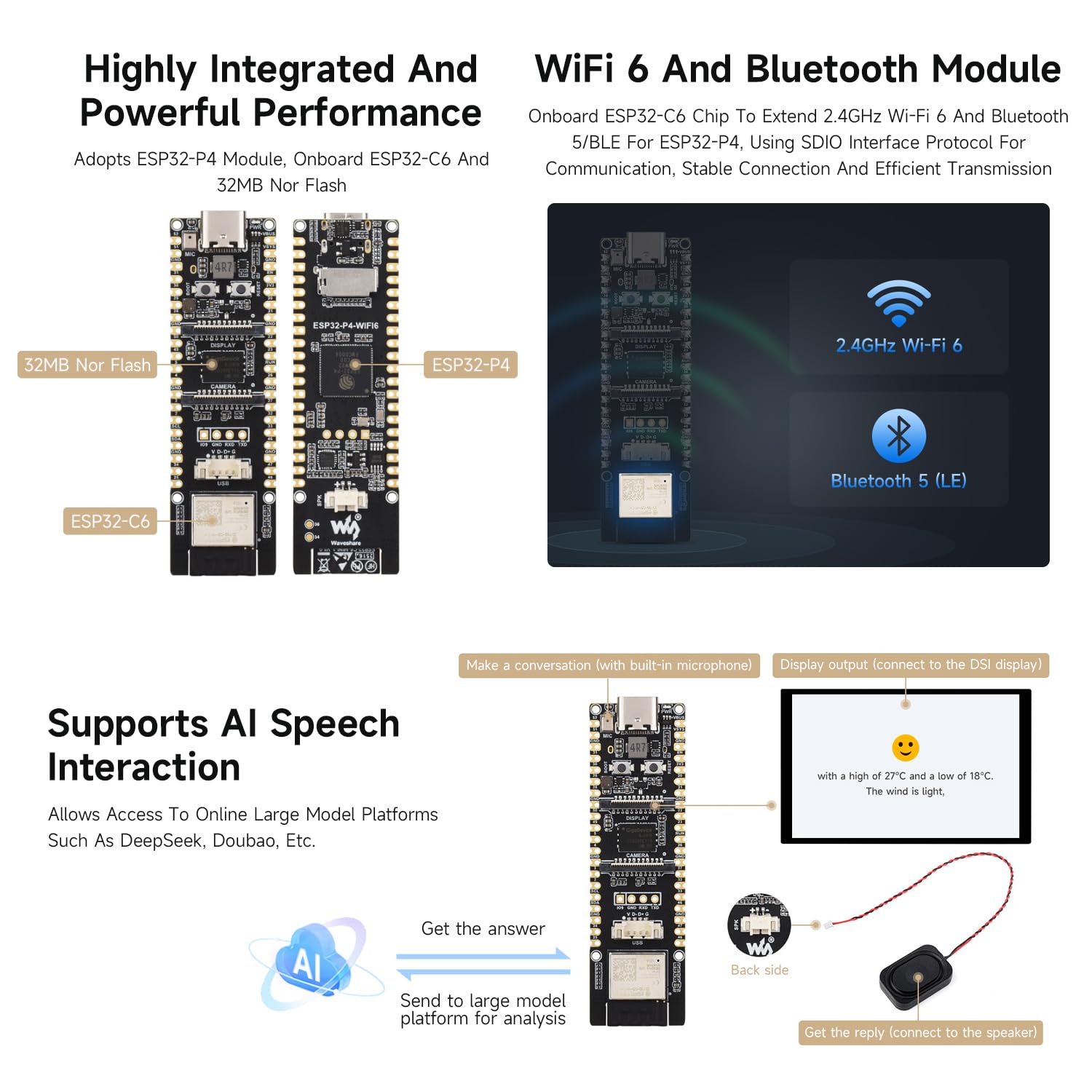

- ESP32-P4-WIFI6-KIT-B(with RPi Camera & 10.1inch DSI Touchscreen). High-performance MCU with RISC-V 32-bit dual-core and single-core processors. 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM
- Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder

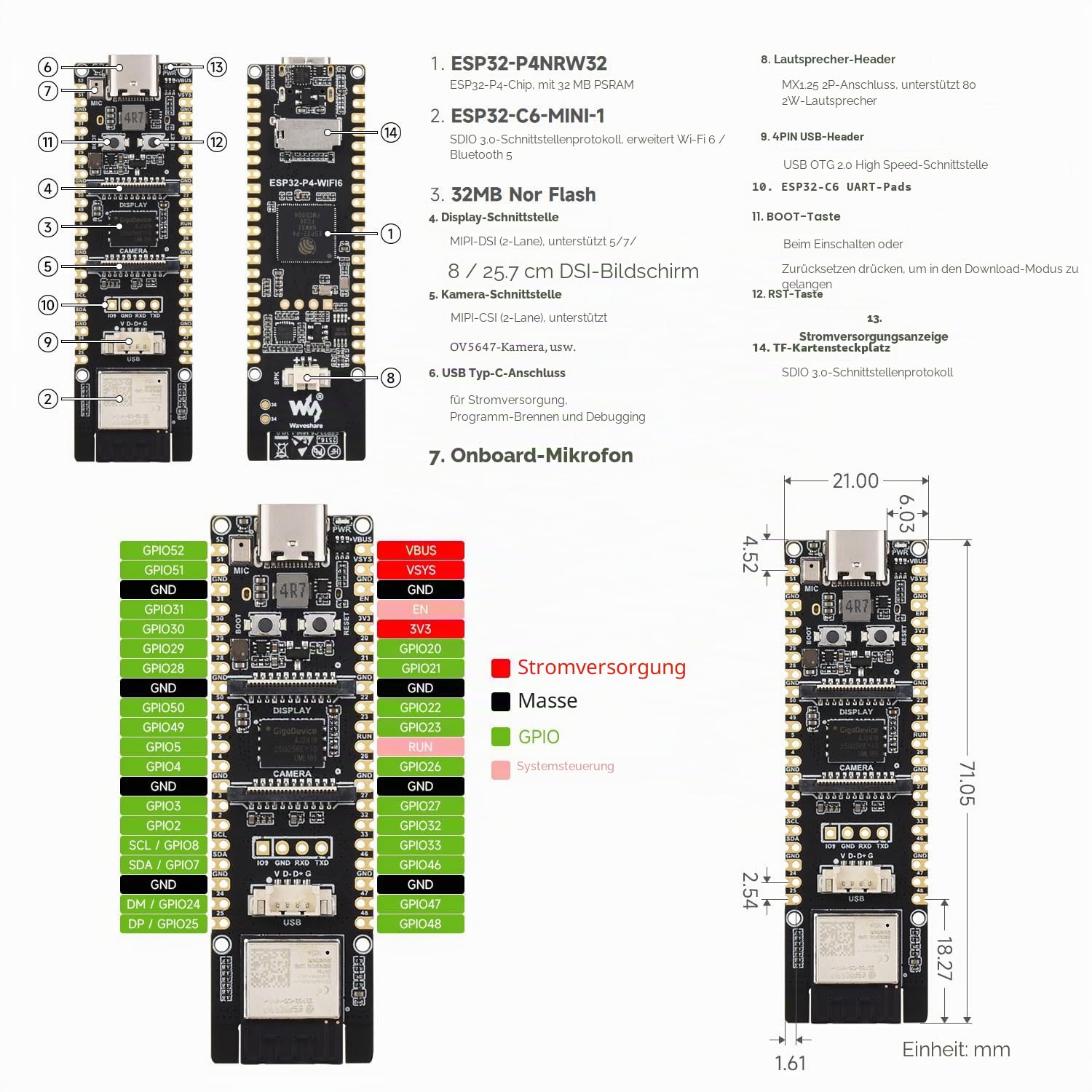

- 32MB PStatic RAM in the chip's package, with onboard 32MB Nor Flash. Adtaping 2*20 GPIO headers with 27 x remaining programmable GPIOs
- Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone, and speaker header, etc.
- Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
