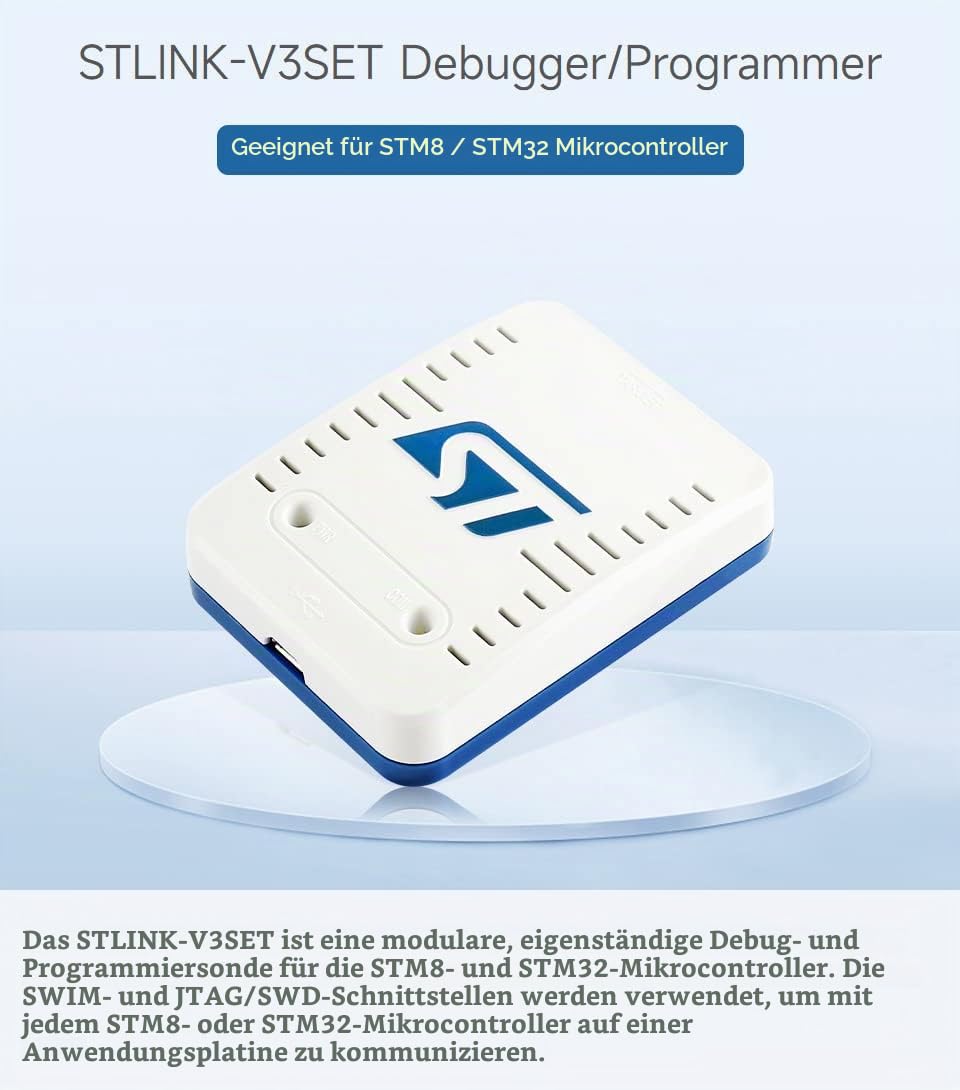

Waveshare STLINK-V3SET Modular in-Circuit Debugger and Programmer for STM32/STM8 Microcontrollers Stand-Alone Probe Bridge and Virtual COM Port Interface

Marke: Waveshare
Konnektivitätstechnologie: USB, UART

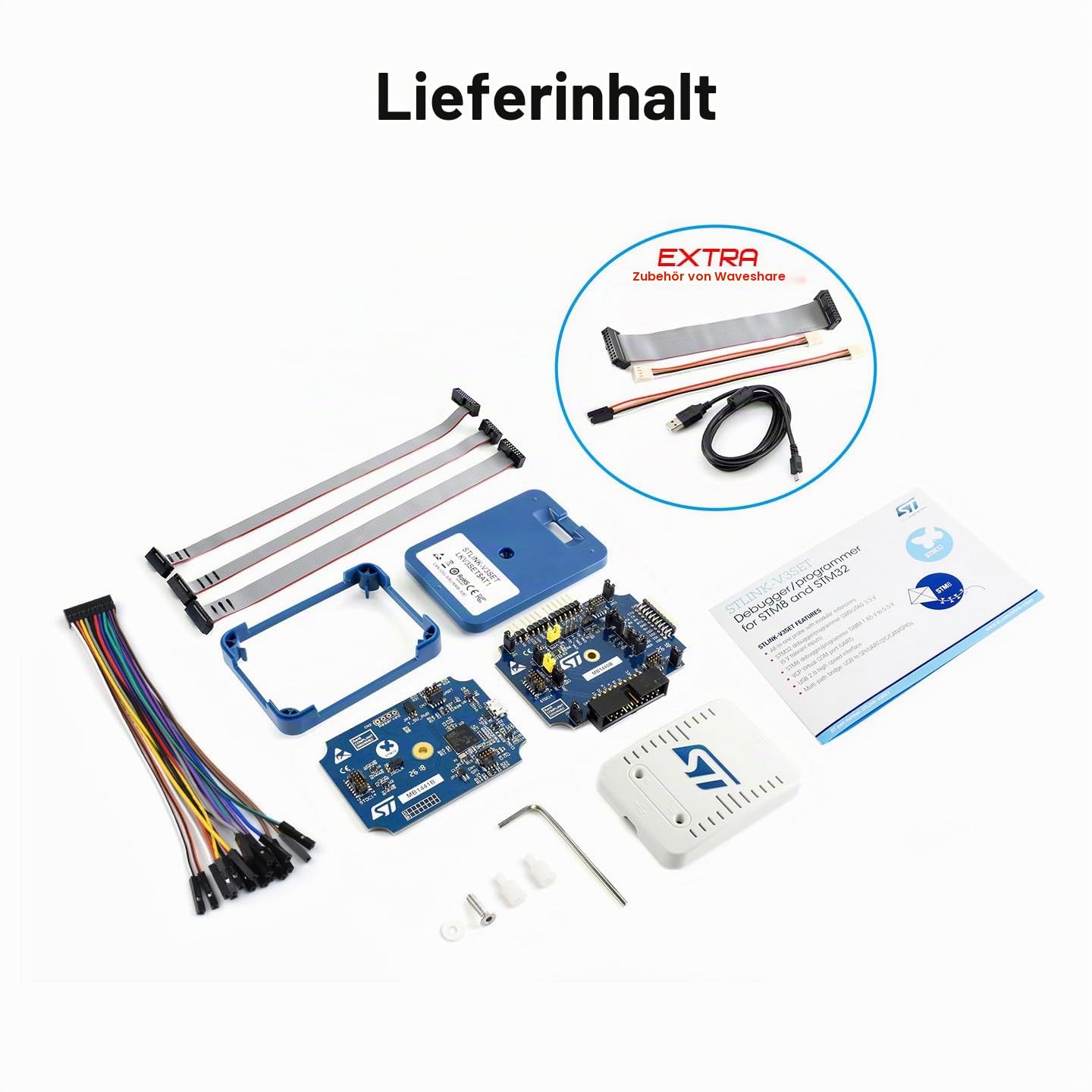

Enthaltene Komponenten: STLINK-V3SET x1, USB Typ A Stecker auf Micro B Stecker Kabel x1, 20-poliges JTAG/SWD Flachband (extra frei) x1, SWIM Dual 4-poliges Verbindungskabel (extra frei) x1, SWIM 4-poliger Stecker auf getrennte Pins Kabel (extra frei) x1Mehr anzeigen
CPU-Hersteller: no
Standard für drahtlose Kommunikation: 802.11b

- Stand-alone probe with modular extensions;Self-powered through a Micro-B USB connector USB 2.0 high-speed compatible interface;Direct firmware update (DFU) support Drag-and-drop Flash programming;Two color LEDs: communication, power
- JTAG / serial wire debugging (SWD) specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch) Flat cable for 20-pin JTAG/SWD (2.54 mm pitch)
- SWIM specific features (only available with adapter board MB1440): 1.65 V to 5.5 V application voltage support SWIM header (2.54 mm pitch) SWIM cables with dual 4-pin connectors / 4-pin connector to separated pins (2.54 mm pitch) SWIM low-speed and high-speed modes support
- Virtual COM port (VCP) specific features: 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs VCP frequency up to 15 MHz Available on STDC14 debug connector (not available on MIPI10)
- Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs Signals available on adapter board only (MB1440)
